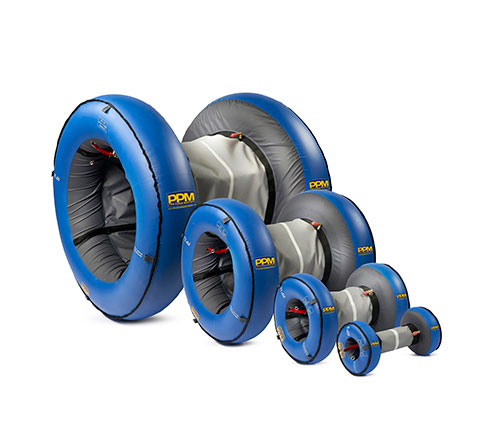

Rapid Purge™ System

RANGE: 8 -80" / 190 - 2044 mm

Used for stainless, duplex, chrome steels, titanium, nickel, and other alloy materials, the PPM Rapid Purge™ system enables high-speed welding of larger diameter pipe joints that need to be purged.

The system is designed to enable the user to produce high-quality, reliable, and repeatable welding of stainless steel tube and pipe joints free from oxidation and discolouration. A 36″ diameter pipe will purge to below 0.1% oxygen in less than 10 minutes, and all smaller pipes correspondingly faster.

Due to the quality of the materials used, the Rapid Purge™ system can be used over and over again, reducing manufacturing costs. The Rapid Purge™ system has been developed specifically to enable high-speed purging for any pipe welding application.

Request a Quote

Mobile Nav

Product Advantages

Dramatic savings of time, gas, and money can be made by using these systems.
Typical purge times of less than 10 minutes!

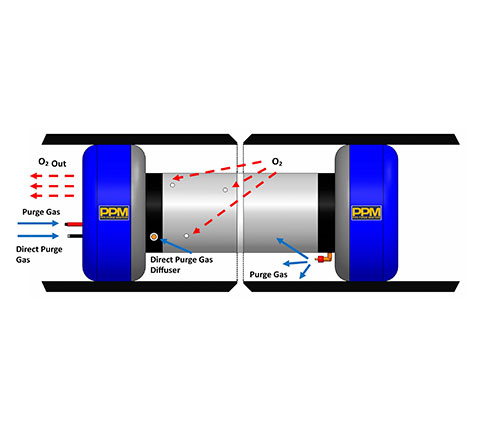

The unique thru-bore design of the central sleeve minimizes the area to be purged, dramatically reducing the gas consumption
Friction-free coatings allow easy movement through pipes from one joint to another, even around bends and elbows
Ready to use, connects to a dedicated and regulated gas supply. Choose any flow rate up to 80 l/min through the twin pre-set purge valve
A central luminous strip allows fast and accurate alignment of the system to the center-point of the weld The inflatable dams and umbilical hose are covered with a heat-resistant material and insulated accordingly for use at temperatures up to 250ºC (482ºF)

Specifications

Part No.	Description	Nominal pipe size	Internal diameter range (I/D)	Weight
RP08	8″ Rapid Purge system	8″ / 200 mm	7.09 – 8.45″ / 180 – 215 mm	3 lbs / 1.40 kg
RP10	10″ Rapid Purge system	10″ / 250 mm	9.26 – 10.61″ / 235 – 270 mm	3 lbs / 1.70 kg
RP12	12″ Rapid Purge system	12″ / 300 mm	11.03 – 12.39″ / 280 – 315 mm	4 lbs / 2.10 kg
RP14	14″ Rapid Purge system	14″ / 350 mm	12.41 – 13.76″ / 315 – 350 mm	5 lbs / 2.50 kg
RP16	16″ Rapid Purge system	16″ / 400 mm	14.38 – 15.73″ / 365 – 400 mm	5 lbs / 2.70 kg
RP18	18″ Rapid Purge system	18″ / 450 mm	16.34 – 17.70″ / 415 – 450 mm	6 lbs / 3.00 kg
RP20	20″ Rapid Purge system	20″ / 500 mm	18.31 – 19.67″ / 465 – 500 mm	7 lbs / 3.40 kg
RP22	22″ Rapid Purge system	22″ / 550 mm	19.69 -21.05″ / 500 – 535 mm	7 lbs / 3.60 kg
RP24	24″ Rapid Purge system	24″ / 600 mm	22.45 – 23.80″ / 570 – 605 mm	8 lbs / 3.80 kg
RP26	26″ Rapid Purge system	26″ / 650 mm	24.41 – 25.77″ / 620 – 655 mm	9 lbs / 4.50 kg
RP28	28″ Rapid Purge system	28″ / 700 mm	26.38 – 27.74″ / 670 – 705 mm	12 lbs / 5.50 kg
RP30	30″ Rapid Purge system	30″ / 750 mm	28.35 – 29.71″ / 720 – 755 mm	13 lbs / 6.00 kg
RP32	32″ Rapid Purge system	32″ / 800 mm	30.32 – 31.68″ / 770 – 805 mm	18 lbs / 8.00 kg
RP34	34″ Rapid Purge system	34″ / 850 mm	32.48 – 33.86″ / 825 – 860 mm	19 lbs / 8.50 kg
RP36	36″ Rapid Purge system	36″ / 900 mm	34.45 – 35.81″ / 875 – 910 mm	20 lbs / 9.10 kg
RP38	38″ Rapid Purge system	38″ / 950 mm	36.61 – 37.99″ / 930 – 965 mm	21 lbs / 9.50 kg
RP40	40″ Rapid Purge system	40″ / 1,000 mm	38.98 – 39.95″ / 990 – 1015 mm	22 lbs / 9.90 kg
RP42	42″ Rapid Purge system	42″ / 1,050 mm	40.56 – 41.91″ / 1030 – 1065 mm	29 lbs /13.20 kg
RP44	44″ Rapid Purge system	44″ / 1,100 mm	42.52 – 43.90″ / 1080 – 1115 mm	30 lbs / 13.70 kg
RP46	46″ Rapid Purge system	46″ / 1,150 mm	44.29 – 45.67″ / 1125 – 1160 mm	32 lbs / 14.50 kg
RP48	48″ Rapid Purge system	48″ / 1,200 mm	46.46 – 47.82″ / 1180 – 1215 mm	33 lbs / 15.00 kg
RP50	50″ Rapid Purge system	50″ / 1,250 mm	48.42 – 49.80″ / 1230 – 1265 mm	35 lbs / 16.00 kg
RP52	52″ Rapid Purge system	52″ / 1,300 mm	50.59 – 51.97″ / 1285 – 1320 mm	37 lbs / 17.00 kg
RP54	54″ Rapid Purge system	54″ / 1,350 mm	52.36 – 53.74″ / 1330 – 1365 mm	39 lbs / 18.00 kg
RP60	60″ Rapid Purge system	60″ / 1,500 mm	58.46 – 59.84″ / 1485 – 1520 mm	44 lbs / 20.00 kg
RP66	66″ Rapid Purge system	66″ / 1,650 mm	64.38 – 65.73″ / 1635 – 1670 mm	55 lbs / 25.00 kg
RP72	72″ Rapid Purge system	72″ / 1,800 mm	70.27 – 71.65″ / 1785 – 1820 mm	62 lbs / 28.00 kg
RP80	80″ Rapid Purge system	80″ / 2,000 mm	78.35 – 79.72″ / 1990 – 2025 mm	66 lbs / 30.00 kg
